Heat Sealing Ptfe Fiberglass Silicone Adhesive Heat Resistant Teflon Tape

PTFE (Teflon) fabric with adhesive is PTFE fabric or PTFE film add silicone pressure sensitive adhesive which provides an excellent release surface for a diversity of industrial applications requiring high temperature, electrical resistance, mechanical strength, fire retardancy and cost effectiveness.

PTFE coated fiberglass adhesive tape is made of high performance fiberglass fabric impregnated with PTFE, and use the film as base material, single surface treated and coated with silicone pressure sensitive adhesive.

The tape is designed for operating under long continuous high temperature and chemical resistance. It is widely used in heating sealing of varieties of sealers, anti-sticking of dryer, covering of roller, etc.

* Long continuous operating temperature resistance of PTFE -100 to +550℉.

* Operating temperature resistance of silicon adhesive -100 to +500℉.

* Non-stick , Low friction, Non toxic

* Excellent release properties

* High chemical and abrasion resistance, Good corrosion resistance

* Good viscosity, long service time.

* Dimensional stability

* Normal thickness: 0.13mm, 0.18mm, 0.25mm, 0.3mm.

* Width: from 9mm to 1250mm.

* Normal color: brown, black, white.

* Roll length: standard roll length from 10m~50m, but the roll length can be customized.

* With or without release liner (release paper).

* As coating of high temperature roller, heating paste and demolding unit. It can be used repeatedly, easy to replace.

* Heat sealing materials for food, drug and plastic bags.

* As gaskets of spout, hopper, aviation mold etc.

* Other fields which needs anti-sticking, corrosion-resistant and heat-resistant surface treatment.

* For packaging, thermoplastic, composite, heat sealing, electrical and other industries.

  1. Normal packaging: PP film + carton + Pallet.
  2. Packagingcan be customized as request.

PTFE Tape

PTFE coated fiberglass adhesive tape

PTFE coated fiberglass adhesive tape is made of high performance fiberglass fabric impregnated with PTFE, and use the film as base material, single surface treated and coated with silicone pressure sensitive adhesive.

The tape is designed for operating under long continuous high temperature and chemical resistance. It is widely used in heating sealing of varieties of sealers, anti-sticking of dryer, covering of roller, etc.

Main properties:

* Long continuous operating temperature resistance of PTFE -100 to +550℉.

* Operating temperature resistance of silicon adhesive -100 to +500℉.

* Non-stick , Low friction, Non toxic

* Excellent release properties

* High chemical and abrasion resistance, Good corrosion resistance

* Good viscosity, long service time.

* Dimensional stability

Capacity and Options:

* Normal thickness: 0.13mm, 0.18mm, 0.25mm, 0.3mm.

* Width: from 9mm to 1250mm.

* Normal color: brown, black, white.

* Roll length: standard roll length from 10m~50m, but the roll length can be customized.

* With or without release liner (release paper).

Main applications:

* As coating of high temperature roller, heating paste and demolding unit. It can be used repeatedly, easy to replace.

* Heat sealing materials for food, drug and plastic bags.

* As gaskets of spout, hopper, aviation mold etc.

* Other fields which needs anti-sticking, corrosion-resistant and heat-resistant surface treatment.

* For packaging, thermoplastic, composite, heat sealing, electrical and other industries.

Main Technical specifications:

Model Color Thickness (mm) Max Width

(mm)

Adhesion (N/100mm) Tensile Strength (N/100mm)
CT-1013J brown 0.13 1250 22 900
CT-1013JC black 0.13 1250 22 900
CT-1018J brown 0.18 1250 48 1700
CT-1018JA white 0.18 1250 48 1700
CT-1018JC black 0.18 1250 48 1700
CT-1025J brown 0.25 1250 62 2750
CT-1030J brown 0.3 1250 90 3650

Remark: Size can be customized.

Packaging:

  1. Normal packaging: PP film + carton + Pallet.
  2. Packagingcan be customized as request.

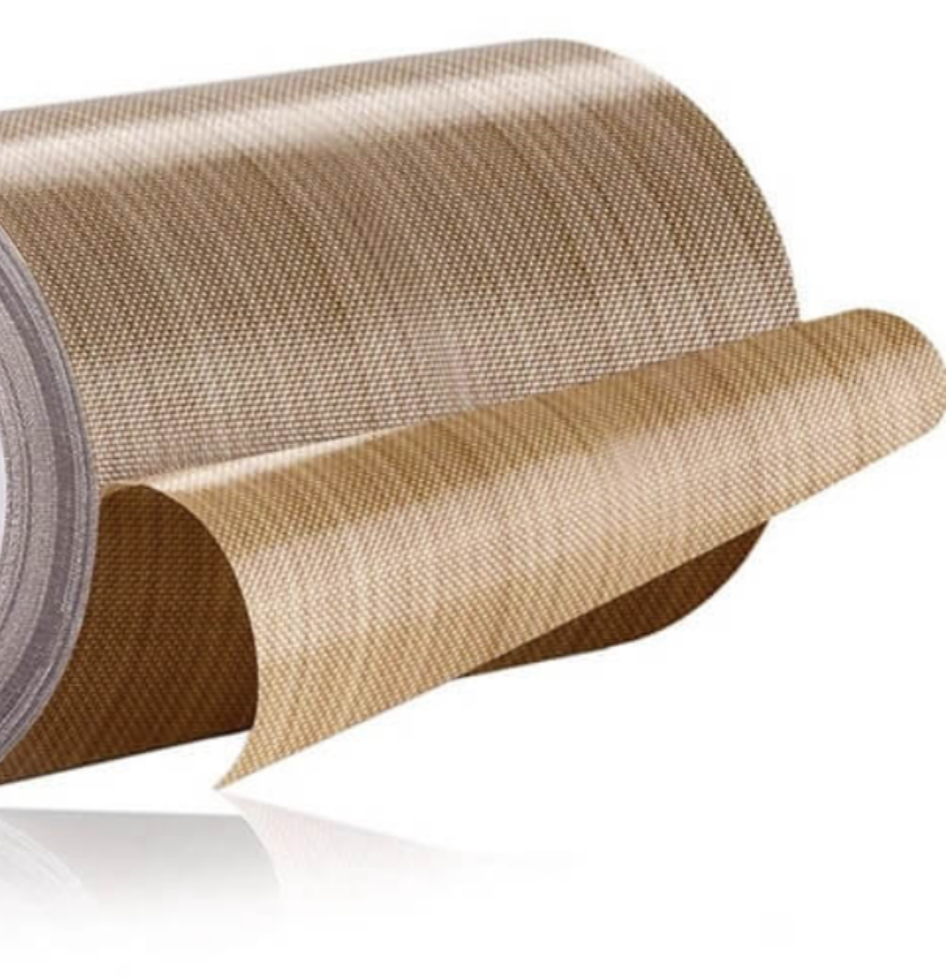

antistatic ptfe tape

free sample ptfe tape

FQA:

Who is Jiujiang PTFE?
Jiujiang PTFE Materials Co., Ltd. is an emerging enterprise devoted to PTFE coated glass fabric, Adhesive PTFE coated glass fabric, PTFE mesh conveyor belt, PTFE grill mat and other PTFE coated glass products.

Can you provide free samples?
We can provide A4 format size samples for free.

Who pay the courier fee?
Customers need to pay the courier fee.

Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.

What’s your delivery time?
Within 5000 square meters: 7~15 days after deposit received.
5000~10,000 square meters: 15~25 days after deposit received.
More than 10,000 square meters: According to delivery terms.
Remark: Expected circumstances may lead to delivery delay, customer will be informed in time.

What’s your payment methods?
T/T, L/C, Paypal or Western Union.

What’s your shipping port?
Shanghai, Shenzhen or according to customer’s request.
