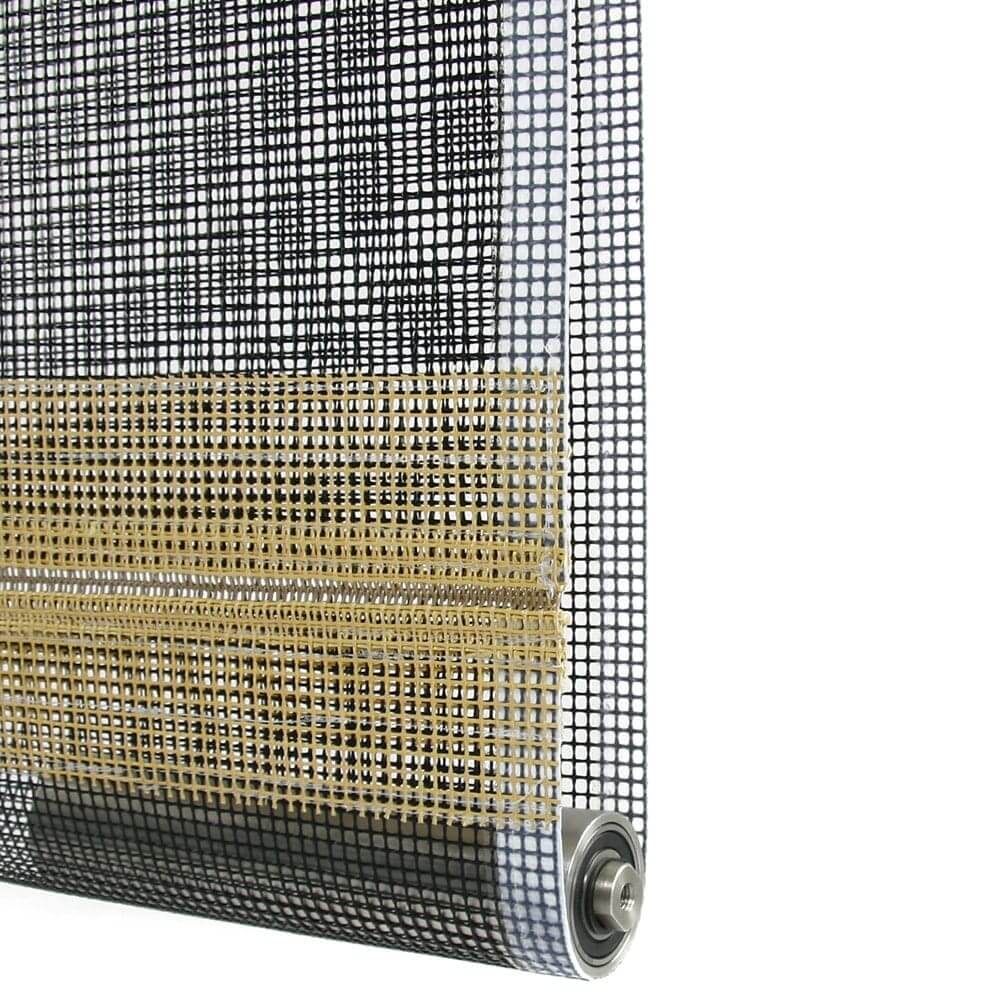

Teflon Mesh Conveyor Belt
Teflon Coated Fiberglass Mesh Conveyor Belt is ideally suited for conveying products within highly efficient air distribution systems allowing optimised moisture removal to take place and is commonly used within ultra violet and infra red dryer units

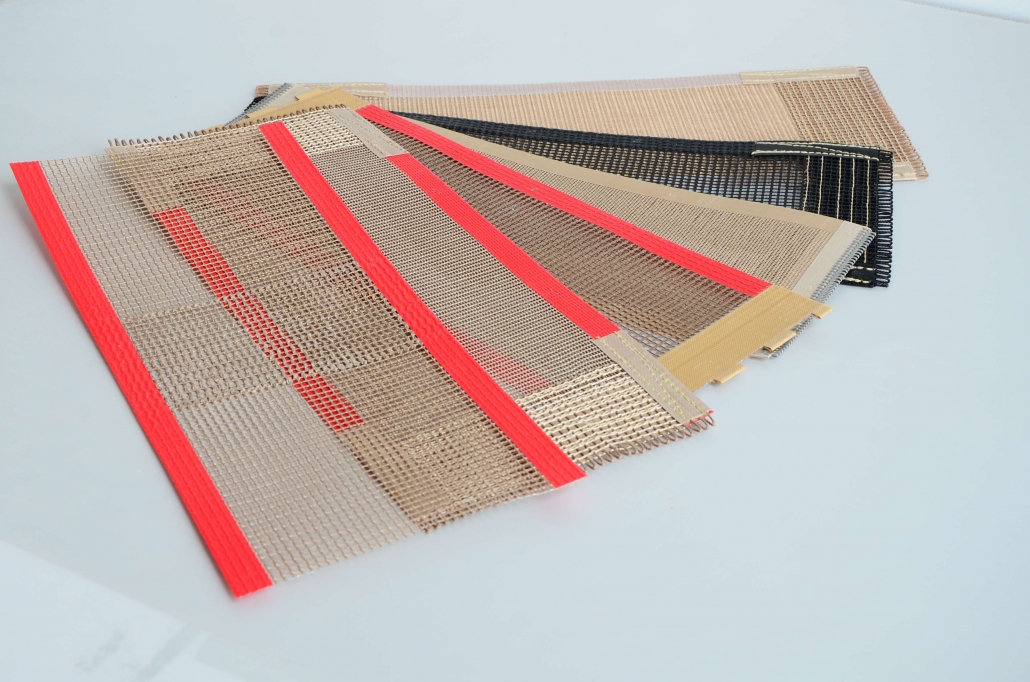

Teflon open mesh conveyor belt
PTFE open mesh conveyor belt is made of fiberglass mesh or aramid(Kevlar) mesh impregnated with PTFE(Teflon). It is the most common rare choice with wide applications, which is widely used for drying of screen printing, food processing, packaging and handling under high temperature. These conveyor belts are long lasting and perform well over operating temperature is from -100°F to +550°F.
Core-Tex has developed a full range of PTFE open mesh conveyor belts. They are used in a variety of applications where materials are handled in a high heat environment. These belts can be used in Textile, Screen Printing, Packaging, Electronic, Food and other industries.
Main properties
* Long continuous operating temperature resistance -100℉ to +550℉
* Chemical corrosion resistance
* Superior non-stick surface, easy to clean
* Good dimensional stability (coefficient of elongation less than 5‰)
* High strength and Good mechanical characteristics
* Good mechanical properties
* Heat resistance and Fire proof
* Nontoxic
* Resistance to UV, IR and HF
* Resistance to bending fatigue, it can be used for smaller wheel diameter.
* Good air permeability, it can reduce heat loss and improve drying efficiency.
Capacity and Options
* Normal mesh size: 1mm*1mm, 2mm*2.5mm, 4mm*4mm, 10mm*10mm, 0.5mm*1mm and 2mm*2mm.
* Thickness: 0.5mm~1.2mm
* Width: 300mm~4000mm.
* Belt size: the size can be customized.
* Normal color: Brown or Black.
* Edging cover types: Heat-sealed PTFE film, PTFE coated fiberglass fabric, PTFE coated Aramid (Kevlar) fabric
* Joint types:
Main applications
* Conveyor belt of drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.
* Conveyor belt of shrinking machine for garment fabric, high-frequency and UV dryer.
* Conveyor belt for hot-air dryer, quick-frozen machinery.
* Conveyor belt of oiling machine for paper glazing and waxing, plant engineering
* Conveyor belt for sealing auto packing machines
* Separating sheet for hardboard production
* For various of food and drugs processing, packaging and handling
Packaging
- Normal packaging: PP film + carton + Pallet.
- Packagingcan be customized as request.

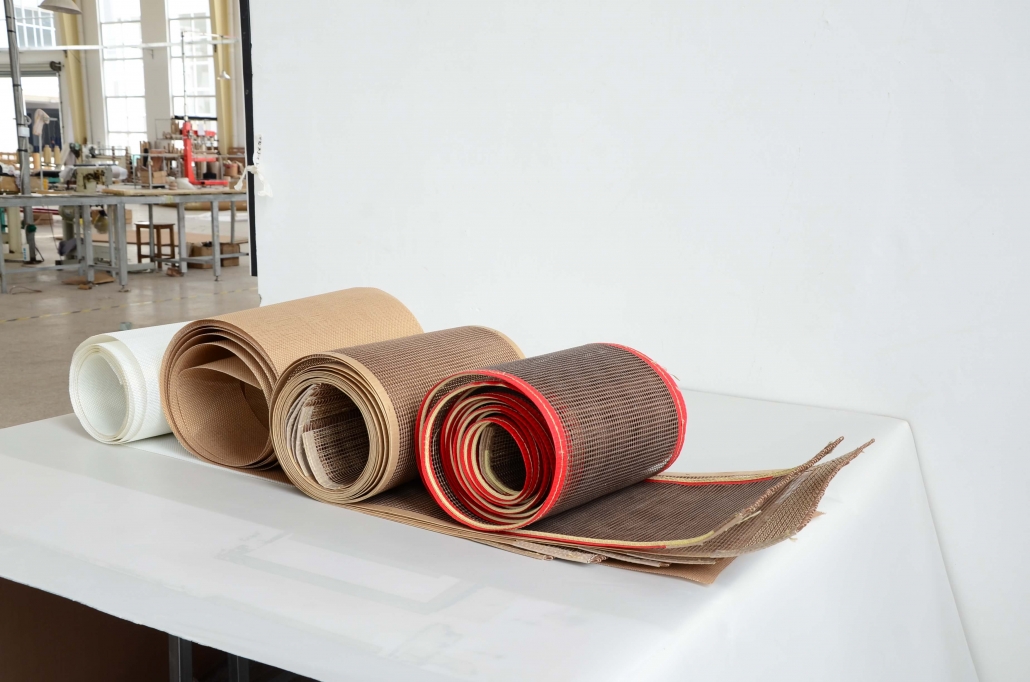

PTFE open mesh conveyor belt
PTFE open mesh conveyor belt is made of fiberglass mesh or aramid(Kevlar) mesh impregnated with PTFE(Teflon). It is the most common rare choice with wide applications, which is widely used for drying of screen printing, food processing, packaging and handling under high temperature. These conveyor belts are long lasting and perform well over operating temperature is from -100°F to +550°F.
Jiujiang PTFE has developed a full range of PTFE open mesh conveyor belts. They are used in a variety of applications where materials are handled in a high heat environment. These belts can be used in Textile, Screen Printing, Packaging, Electronic, Food and other industries.
Main properties:
* Long continuous operating temperature resistance -100℉ to +550℉
* Chemical corrosion resistance
* Superior non-stick surface, easy to clean
* Good dimensional stability (coefficient of elongation less than 5‰)
* High strength and Good mechanical characteristics
* Good mechanical properties
* Heat resistance and Fire proof
* Nontoxic
* Resistance to UV, IR and HF
* Resistance to bending fatigue, it can be used for smaller wheel diameter.
* Good air permeability, it can reduce heat loss and improve drying efficiency.
Capacity and Options:
* Normal mesh size: 1mm*1mm, 2mm*2.5mm, 4mm*4mm, 10mm*10mm, 0.5mm*1mm and 2mm*2mm.
* Thickness: 0.5mm~1.2mm
* Width: 300mm~4000mm.
* Belt size: the size can be customized.
* Normal color: Brown or Black.
* Edging cover types: Heat-sealed PTFE film, PTFE coated fiberglass fabric, PTFE coated Aramid (Kevlar) fabric
* Joint types:
Main applications:
* Conveyor belt of drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.
* Conveyor belt of shrinking machine for garment fabric, high-frequency and UV dryer.
* Conveyor belt for hot-air dryer, quick-frozen machinery.
* Conveyor belt of oiling machine for paper glazing and waxing, plant engineering
* Conveyor belt for sealing auto packing machines
* Separating sheet for hardboard production
* For various of food and drugs processing, packaging and handling
Main Technical specifications:
| Model | Material | Mesh size (mm) | Weight (g/m²) | Thickness (mm) | Tensile Strength (N/cm) | Max Width (mm) |
| CT-0091 | PTFE coated fiberglass | 1*1 | 490 | 0.58 | 310/290 | 4000 |
| CT-0092 | PTFE coated fiberglass | 2*2 | 460 | 0.68 | 350/310 | 4000 |
| CT-0093 | PTFE coated fiberglass | 4*4 | 430 | 0.7 | 390/320 | 4000 |
| CT-0094 | PTFE coated fiberglass | 4*4 | 480 | 0.7 | 390/320 | 4000 |
| CT-0095 | PTFE coated fiberglass | 4*4 | 580 | 1.0 | 395/370 | 4000 |
| CT-0096 | PTFE coated fiberglass | 4*4 | 740 | 1.0 | 395/370 | 4000 |
| CT-0097 | PTFE coated fiberglass+Kevlar | 4*4 | 770 | 1.2 | 895/370 | 4000 |
| CT-0098 | PTFE coated Kevlar | 4*4 | 500 | 1.0 | 900/600 | 4000 |
| CT-0099 | PTFE coated fiberglass | 10*10 | 450 | 1.2 | 360/300 | 4000 |
| CT-0001 | PTFE coated fiberglass | 0.5*1 | 420 | 0.5 | 310/290 | 4000 |
| CT-0002 | PTFE coated fiberglass | 2*2.5 | 490 | 0.75 | 390/320 | 3000 |
Remark: Size can be customized.
Packaging:
- Normal packaging: PP film + carton + Pallet.
- Packagingcan be customized as request.
FQA:
Who is Jiujiang PTFE?
Jiujiang PTFE Materials Co., Ltd. is an emerging enterprise devoted to PTFE coated glass fabric, Adhesive PTFE coated glass fabric, PTFE mesh conveyor belt, PTFE grill mat and other PTFE coated glass products.
Can you provide free samples?
We can provide A4 format size samples for free.
Who pay the courier fee?
Customers need to pay the courier fee.
Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
What’s your delivery time?
Within 5000 square meters: 7~15 days after deposit received.
5000~10,000 square meters: 15~25 days after deposit received.
More than 10,000 square meters: According to delivery terms.
Remark: Expected circumstances may lead to delivery delay, customer will be informed in time.
What’s your payment methods?
T/T, L/C, Paypal or Western Union.
What’s your shipping port?
Shanghai, Shenzhen or according to customer’s request.
